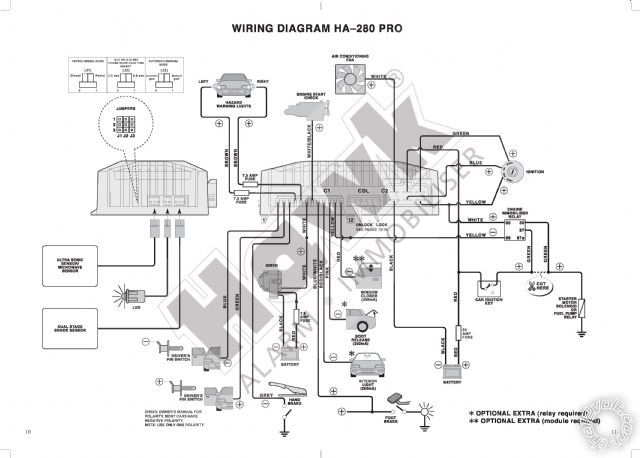

Positive hazard light output (+). Connect the brown wire to the circuit that shows +12v or only when the hazard lights are on. Positive siren output (+). Connect the white wire to the siren of white wire.

The black wire must connect to a solid chassis ground. Clean away any paint or dirt to ensure the best possible ground. Main power input (+). Connect to the battery or constant power wire at the ignition switch with a minimum 15 amp supply. Understanding and how it operates; Cdl pin 2 yellow wire: Connect to the main ignition wire that provides +12v when the ignition is on and while cranking the starter. Also, when ignition is off, this wire should not show any voltage (0v). Connect to the driver door.
